Was ist bioelektrische Impedanzanalyse (BIA)?
Hinter den Kulissen
Was ist bioelektrische Impedanzanalyse (BIA)?
Hinter den Kulissen
Die bioelektrische Impedanzanalyse (BIA) misst Impedanz, indem schwache Wechselströme durch den menschlichen body geleitet werden.
Das Prinzip des Widerstands lässt sich mit Verkehr vergleichen: Je freier der Weg, desto leichter fließt der Strom. body water leitet Strom gut, während Fettgewebe einen höheren Widerstand aufweist. Aus diesen Messwerten kann die bodyzusammensetzung abgeleitet werden.
Putting It All Together
InBody timeline

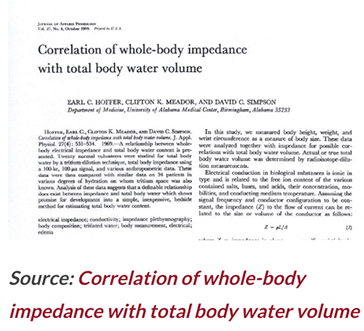

1969
Hoffer and the Impedance Index
In 1969, Hoffer carried out a series of experiments to prove that total body water and biological impedance were highly correlated, suggesting that impedance measurement could be used for determining total body water.
He showed the squared value of height divided by impedance was highly correlated with total body water.
Hoffer took impedance measurements of the right half of the body including the right arm, torso, and right leg.
The squared value divided by impedance showed correlation coefficient of 0.92 with total body water, which was higher than other indices including body weight. The equation Hoffer proved is the impedance index used in BIA today.
1969
Hoffer and the Impedance Index
In 1969, Hoffer carried out a series of experiments to prove that total body water and biological impedance were highly correlated, suggesting that impedance measurement could be used for determining total body water.
He showed the squared value of height divided by impedance was highly correlated with total body water.
Hoffer took impedance measurements of the right half of the body including the right arm, torso, and right leg.
The squared value divided by impedance showed correlation coefficient of 0.92 with total body water, which was higher than other indices including body weight. The equation Hoffer proved is the impedance index used in BIA today.
This is a sample timeline content. To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.
1976
RJL Systems and the first impedance meter

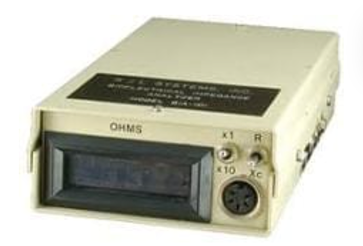

In 1979, RJL Systems commercialized the impedance meter for the first time and the BIA method began to gain popularity.
The device measured impedance by attaching electrodes on the back of the right hand and a top of the right foot of a patient and conducting a current of 50kHz through the right half of the body.
Prior to this, body composition could only be measured by caliper or underwater weighing. Such methods needed to be carried out by skilled people and installation was not easy. Also, only specific types of patients could benefit from them.
BIA however, was easy, fast, less expensive and less intrusive. Therefore, many body composition researchers, nutritionists, and medical experts began to use BIA.
1976
RJL Systems and the first impedance meter
In 1979, RJL Systems commercialized the impedance meter for the first time and the BIA method began to gain popularity.
The device measured impedance by attaching electrodes on the back of the right hand and a top of the right foot of a patient and conducting a current of 50kHz through the right half of the body.
Prior to this, body composition could only be measured by caliper or underwater weighing. Such methods needed to be carried out by skilled people and installation was not easy. Also, only specific types of patients could benefit from them.
BIA however, was easy, fast, less expensive and less intrusive. Therefore, many body composition researchers, nutritionists, and medical experts began to use BIA.
This is a sample timeline content. To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.
1980
Discovering limitations to BIA with empirical data

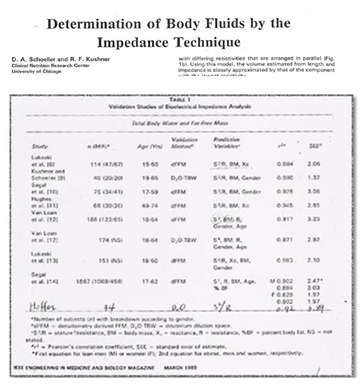

Research by Lukaski, Segal and other scholars accelerated the evolution of BIA. Studies proved BIA had high correlation with gold standard methods like underwater weighing and DEXA. But technical limitations of BIA began to surface in the late 1980s.

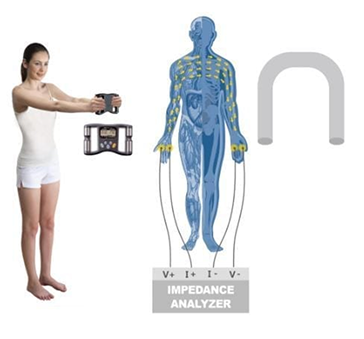

One limitation was that BIA assumed the human body to be in the shape of one cylinder and used a single frequency (50 kHz).
This may have worked for patients with standard body types, but it wasn’t as accurate for other populations.
So, researchers came up with various equations in addition to the impedance index so as to complement the technical limitation of BIA and achieve greater accuracy for patient groups of different age, gender etc.
1980
Discovering limitations to BIA with empirical data
Research by Lukaski, Segal and other scholars accelerated the evolution of BIA. Studies proved BIA had high correlation with gold standard methods like underwater weighing and DEXA. But technical limitations of BIA began to surface in the late 1980s.
One limitation was that BIA assumed the human body to be in the shape of one cylinder and used a single frequency (50 kHz).
This may have worked for patients with standard body types, but it wasn’t as accurate for other populations.
So, researchers came up with various equations in addition to the impedance index so as to complement the technical limitation of BIA and achieve greater accuracy for patient groups of different age, gender etc.
This is a sample timeline content. To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.

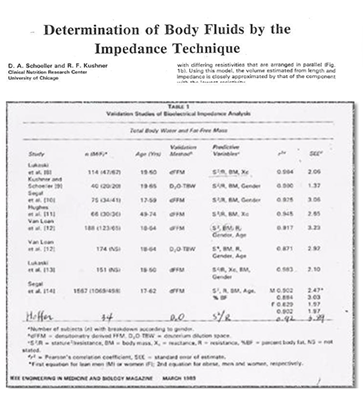

1980
Lukaski and Kushner develop empirical equations

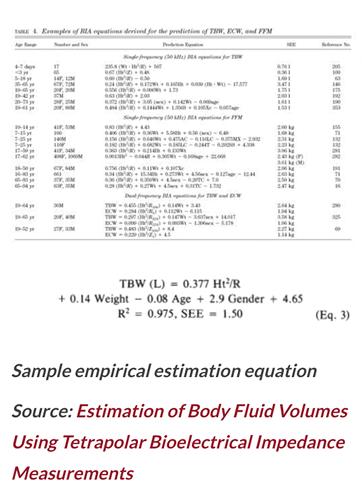

To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.
1980
Lukaski and Kushner develop empirical equations
To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.
This is a sample timeline content. To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.
1980
Discovering limitions to BIA with empirical data
Research by Lukaski, Segal and other scholars accelerated the evolution of BIA.
Studies proved BIA had high correlation with gold standard methods like underwater weighing and DEXA. But technical limitations of BIA began to surface in the late 1980s.
One limitation was that BIA assumed the human body to be in the shape of one cylinder and used a single frequency (50 kHz).
This may have worked for patients with standard body types, but it wasn’t as accurate for other populations.
So, researchers came up with various equations in addition to the impedance index so as to complement the technical limitation of BIA and achieve greater accuracy for patient groups of different age, gender etc.
1980
Discovering limitions to BIA with empirical data
Research by Lukaski, Segal and other scholars accelerated the evolution of BIA.
Studies proved BIA had high correlation with gold standard methods like underwater weighing and DEXA. But technical limitations of BIA began to surface in the late 1980s.
One limitation was that BIA assumed the human body to be in the shape of one cylinder and used a single frequency (50 kHz).
This may have worked for patients with standard body types, but it wasn’t as accurate for other populations.
So, researchers came up with various equations in addition to the impedance index so as to complement the technical limitation of BIA and achieve greater accuracy for patient groups of different age, gender etc.
This is a sample timeline content. To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.
1980
Home-use BIA Devices
Due to technological constraints, BIA devices became home-use devices rather than hospital devices.
In the late 1980s, Japanese manufacturers released various types of BIA-based body composition devices that could easily be used by the general public.
Some devices measured the impedance between two feet as the user stands on the scale, while another would measure the impedance between two hands while holding the device.
1980
Home-use BIA Devices
Due to technological constraints, BIA devices became home-use devices rather than hospital devices.
In the late 1980s, Japanese manufacturers released various types of BIA-based body composition devices that could easily be used by the general public.
Some devices measured the impedance between two feet as the user stands on the scale, while another would measure the impedance between two hands while holding the device.
This is a sample timeline content. To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.
1992
The History of BIA Technology

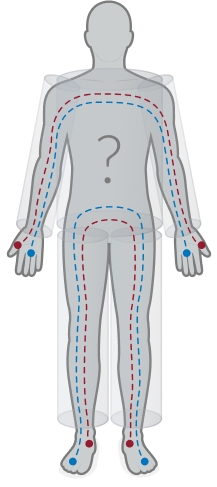

Since the inaccuracy of BIA is due to technical limitations, many argued that this could be improved upon. In 1992, Kushner claimed that the human body is made up of five cylinders (right arm, left arm, torso, right leg, left leg) instead of one.
While the thin limbs affect the total impedance, the torso, which has the largest cross-sectional area, has little impact on impedance. However, since the torso makes up 50% of lean body mass, Kushner emphasized that measuring the impedance of the body torso separately would be very important.
Measuring the total impedance alone would not be sufficient but all five parts must be measured separately at different frequencies, making a distinction between extracellular water and intracellular water.
In other words, the technical limitations of BIA should be overcome by measuring different parts at different frequencies.
1992
The History of BIA Technology
Since the inaccuracy of BIA is due to technical limitations, many argued that this could be improved upon. In 1992, Kushner claimed that the human body is made up of five cylinders (right arm, left arm, torso, right leg, left leg) instead of one.
While the thin limbs affect the total impedance, the torso, which has the largest cross-sectional area, has little impact on impedance. However, since the torso makes up 50% of lean body mass, Kushner emphasized that measuring the impedance of the body torso separately would be very important.
Measuring the total impedance alone would not be sufficient but all five parts must be measured separately at different frequencies, making a distinction between extracellular water and intracellular water.
In other words, the technical limitations of BIA should be overcome by measuring different parts at different frequencies.
This is a sample timeline content. To increase the accuracy of the results, researchers came up with empirical equations that utilized empirical data such as gender and age to calculate a person’s body composition. Empirical data is knowledge acquired by means of observation or experimentation. By collecting data on a sample population that (hopefully) represents the variance of the entire population, researchers attempt to derive trends that may be used to predict outcomes. In body composition, researchers identify these trends in muscle and fat mass; they use this data to predict body composition based on specific variables (age, gender, ethnicity, etc.)
In 1986, Lukaski used the published equations using impedance index, body weight and reactance; and in 1986, Kushner published equations using the impedance index, body weight and gender. Although empirical estimations could give you an accurate estimate of a general user’s body composition, there are significant problems when they are used for medical purposes. Let’s suppose that there is a device that uses an empirical equation to calculate total body water. And there are two people who have same amount of lean body mass, but one person is 30 years old, and the other one is 40 years old.
Even though they have the same amount of lean body mass, the empirical equations will calculate that these two people will have 0.8 L difference in total body water only because of the age, which is neither fair nor accurate.

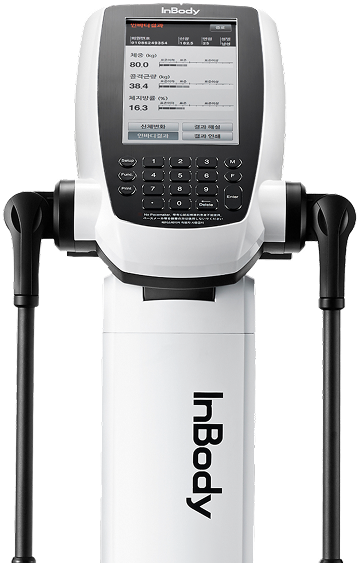

1996
Dr. Cha creates the InBody body composition analyzer

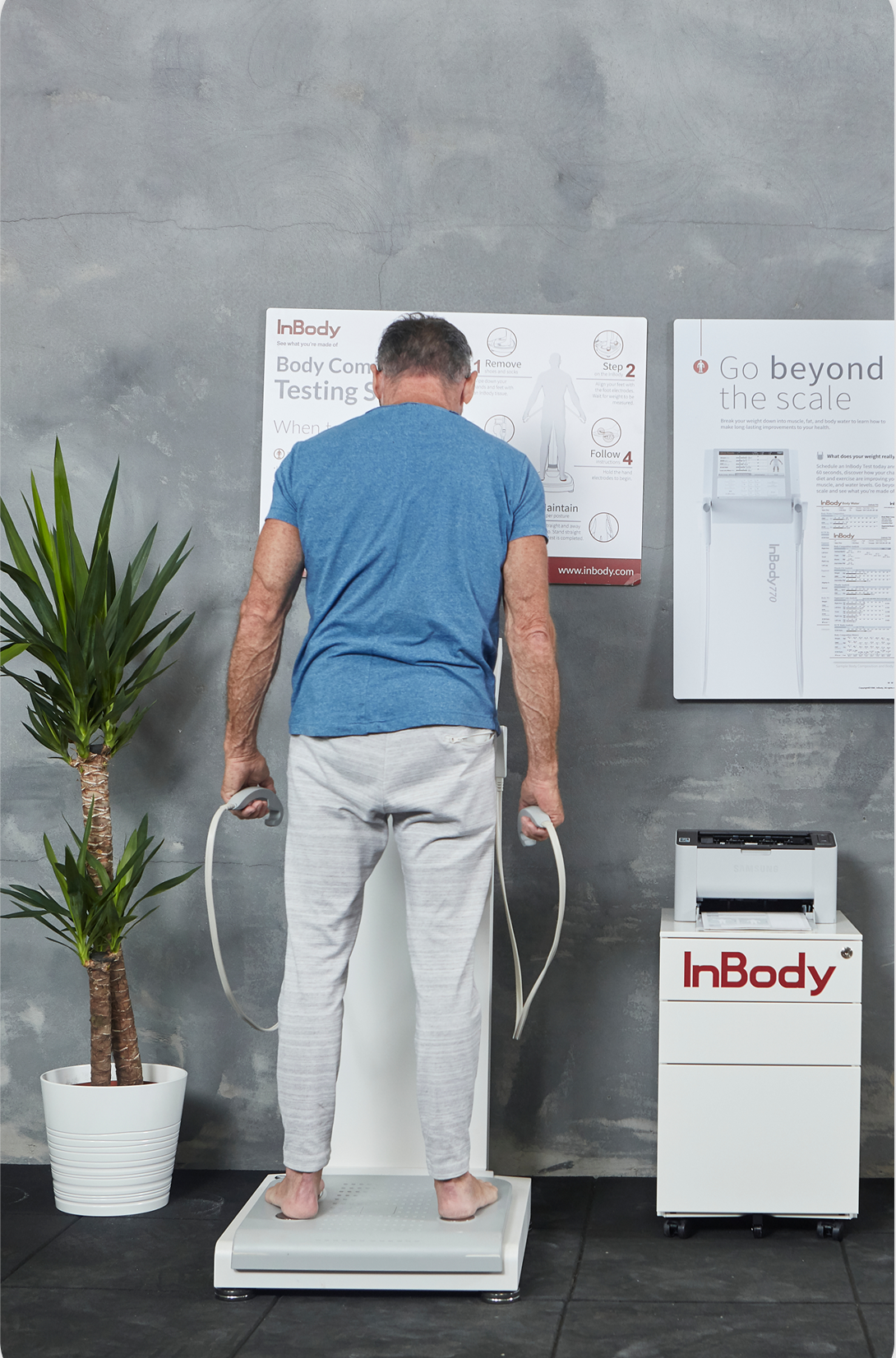

In 1996, Dr. Kichul Cha, a bioengineering major at Harvard Medical School, developed the world’s first 8-point tactile electrode system with direct segmental analysis which measures impedance for the five different parts of the body at multiple frequencies.
Measuring impedance by applying currents of multi-frequencies on the five parts of the body took a separate impedance measurement. Moreover, it allows separately checking torso impedance. This yielded highly accurate results without using empirical data. Thus, InBody body composition analyzers became a precise medical device. Impedance values for all cylinders, including the torso, can be found on the InBody Result Sheet.
Many BIA products today provide muscle mass for each section of the body. However, most of such products are unable to take sectional impedance measurements, especially the torso impedance.
However, as shown on an InBody Result Sheet, you can see the impedance values of all five parts of the body including the torso with the use of both high and low frequencies.
1996
Dr. Cha creates the InBody body composition analyzer
In 1996, Dr. Kichul Cha, a bioengineering major at Harvard Medical School, developed the world’s first 8-point tactile electrode system with direct segmental analysis which measures impedance for the five different parts of the body at multiple frequencies.
Measuring impedance by applying currents of multi-frequencies on the five parts of the body took a separate impedance measurement. Moreover, it allows separately checking torso impedance. This yielded highly accurate results without using empirical data. Thus, InBody body composition analyzers became a precise medical device. Impedance values for all cylinders, including the torso, can be found on the InBody Result Sheet.
Many BIA products today provide muscle mass for each section of the body. However, most of such products are unable to take sectional impedance measurements, especially the torso impedance.
However, as shown on an InBody Result Sheet, you can see the impedance values of all five parts of the body including the torso with the use of both high and low frequencies.
